Portable Elcometer High Volume Air Distribution Manifolds (ADM) are designed to maintain a consistent air supply to multiple air powered devices.

  • Heavy duty 6mm (¼”) construction steel thickness
  • Supplied with plug as standard
  • Supply up to 6 different air powered devices
  • Inbuilt moisture trap and baffle separates moisture from air supply
  • Designed for use with air compressors, up to a maximum working pressure of 15bar (217psi)
  • Built in lifting lugs and wheels for easy manoeuvring around site

Available on back-order

When connecting multiple air powered devices to a single compressor, the demands on air flow can vary as each device switches on or off. An air distribution manifold (ADM) can reduce fluctuations in demand, acting as a buffer, to provide a more consistent air supply to multiple devices.

Elcometer’s Air Distribution Manifolds are designed with a range of features and benefits and the ability to connect up to 6 different air powered appliances at any one time, depending on the model.

The Elcometer Air Distribution Manifold is supplied with plugs so that when an air outlet is not in use, the compressed air does not escape.

The ADM features a moisture separation system to ensure there is no moisture in the compressed air that is dispensed, this works by cooling the air so that the water particles are removed, the water then drips out of the adjustable ball valve exiting the air distribution manifold.

Available Types:

PED, ASME

Specifications - PED

Part Number ADM75 ADM150 ADM300
Capacity 75 litres (2.6cu ft) 150 litres (5.3cu ft) 300 litres (10.6cu ft)
Pot Diameter 353mm (139/10”) 492mm (192/5“) 604mm (234/5“)
Height 1155mm (451/2“) 1155mm (451/2“) 1365mm (534/5“)
Width 663mm (261/10“) 762.3mm (30″) 846mm (333/10“)
Weight 90kg (198.4lb) 125kg (275.6lb) 205kg (452lb)
Air Inlet 1 x 50.8mm (2”) BSP 1 x 50.8mm (2”) BSP 1 x 76.2mm (3”) BSP1
Number of Air Outlet Points 5 5 6
Air Outlet Dimensions 1 x 50.8mm (2”) BSP2

4 x 31.75mm (11/4“) BSP

1 x 50.8mm (2”) BSP2

4 x 31.75mm (11/4“) BSP

2 x 50.8mm (2”) BSP2

4 x 31.75mm (11/4“) BSP

Pressure Relief Valve Outlet 1 x 25.4mm (1”) BSP3 1 x 25.4mm (1”) BSP3 1 x 25.4mm (1”) BSP3

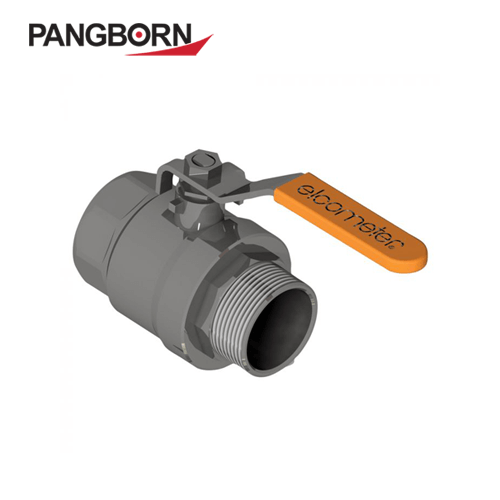

Drain Outlet 1 x 19mm (3/4“) BSP Ball Valve 1 x 19mm (3/4“) BSP Ball Valve 1 x 19mm (3/4“) BSP Ball Valve
Max Working Pressure (WP) 15bar (217psi) 15bar (217psi) 15bar (217psi)
Operating Temperature Range 0 to 60°C (32 to 140°F) 0 to 60°C (32 to 140°F) 0 to 60°C (32 to 140°F)



1 With 76.2mm (3”) to 50.8mm (2”) removable reducing bush fitted

2 With 50.8mm (2”) to 38.1mm (11/2”) removable reducing bush

3 To fit Elcometer PRV, a 12.7mm (0.5”) reducing bush is required.

Specifications - ASME

Part Number ADM75N ADM150N ADM300N
Capacity 2.6cu ft (75 litres) 5.3cu ft (150 litres) 10.6cu ft (300 litres)
Pot Diameter 139/10” (353mm) 192/5” (492mm) 234/5”  (604mm)
Height 451/2” (1155mm) 451/2” (1155mm) 534/5”  (1365mm)
Width 261/10” (663mm) 30” (762.3mm) 333/10” (846mm)
Weight 90kg (198.4lb) 125kg (275.6lb) 205kg (452lb)
Air Inlet 1 x 2” (50.8mm) 1 x 2” (50.8mm) 1 x 3” (76.2mm) 1
Number of Air Outlet Points 5 5 6
Air Outlet Dimensions 1 x 2” (50.8mm)2
4 x 1¼” (31.75mm)
1 x 2” (50.8mm)2
4 x 1¼” (31.75mm)
2 x 2“(50.8mm)2
4 x 1¼” (31.75mm)
Pressure Relief Valve Outlet 1 x 1” (25.4mm)3 1 x 1” (25.4mm)3 1 x 1” (25.4mm)3
Drain Outlet 1 x 3/4” (19mm) Ball Valve 1 x 3/4” (19mm) Ball Valve 1 x 3/4” (19mm) Ball Valve
Max Working Pressure (WP) 15bar (217psi) 15bar 15bar
Operating Temperature Range 32 to 140°F
(0 to 60°C)
32 to 140°F
(0 to 60°C)
32 to 140°F
(0 to 60°C)

1 With 3” (76.2mm) to 2” (50.8mm) removable reducing bush fitted

2 With 2” (50.8mm) to 11/2” (38.1mm) removable reducing bush

3 To fit Elcometer PRV, a 0.5” (12.7mm) reducing bush is required
